SE900-1, Large Gel 2D Electrophoresis System with Gel Caster, Hoefer

SE900-1, Large Gel 2D Electrophoresis System with Gel Caster, Hoefer

Reference SE900-1

$0.00

Discontinued
Gel Caster
6 Hinged Cassettes
Buffer Cooling & Recirculation
3 Equipment Bundles

Packages

SE900, Large 2-D Gel Electrophoresis System by Hoefer

For high resolution 2D electrophoresis and those who want to cast their own gels. This large gel format vertical electrophoresis unit with gel caster runs 6 SDS-PAGE gels simultaneously. Its buffer circulation system ensures uniform buffer ionic distribution and temperature for consistent and optimum results every time. It is made of clear robust acrylic with easy-carry handles, buffer drain port, and uses a state-of-the-art design that eliminates upper buffer chamber and hence buffer leakage.

Features include:

Gel Caster
Glass Hinged Cassettes (6)
Gel Capacity: 6, 25 x 20cm
Buffer Circulation & Cooling System
Accommodates most Manufacturers Gel Plates
2 year manufacturers’ warranty

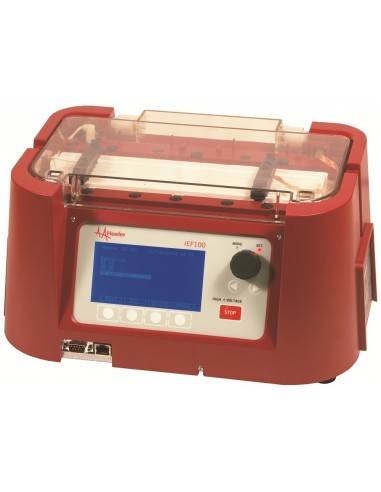

Can be purchased with Hoefer IEF100, IPG system

Complete system includes:

Electrophoresis Tank, Buffer chamber with pumps, Safety lid with leads, Gel rack, 10 ft. Tubing, Two pair recirculation bath connectors, Drain connector, Seven tubing clamps, Gel seal, Wonder wedge plate separation tool, Multicaster with ported face plate, Six red spring clamps, Two thumb screws, Ten divider sheets, Filler plug, Cassette blank, Gel seal, Six glass hinge cassettes

Technical Specifications: Hoefer SE900-1
Gel Size	25 x 20cm (w x h)
Gel Plate Size	28 x 21cm (w x h)
Casting Cassettes, Glass, Hinged	6
Multiple Gel Caster	1
Maximum Power Setting	600V, 1000mA, 150W
Maximum Temperature	45C
Humidity	Up to 80%
Unit Dimensions (W x D x H)	43 x 43 x 20cm
SE900 Rating	100-240 V, 50-6-Hxm 2A
Weight	13.6Kg (29.92lbs)
Certifications	UL61010-1, CE, CSA22.2 1010.1, EN61010-1,

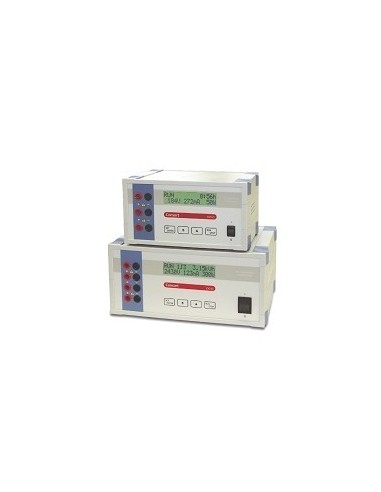

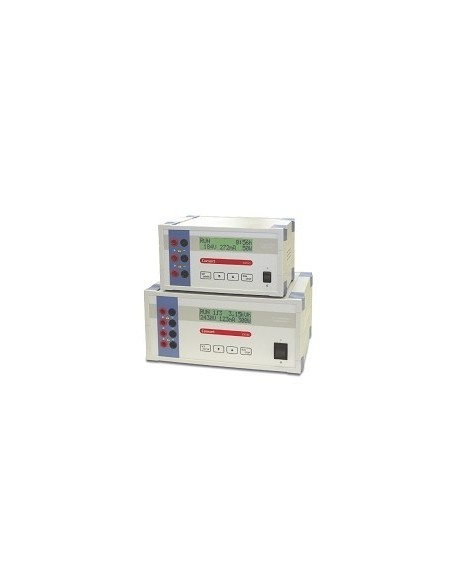

Recommended Power Supply	Consort EV265 (600V, 500mA, 150W)
