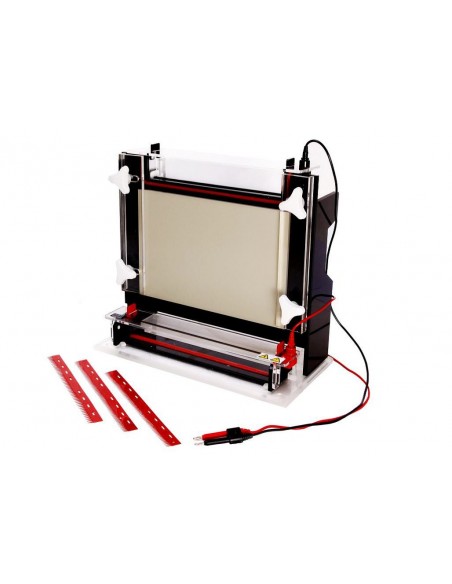

Nucleic Acid Sequencing System...SEQUENATOR 39
SEQUENATOR 39 is a nucleic acid sequencing electrophoresis system that provides high sample throughput from 32 to 39 samples with greater resolution via the 420mm gel length. Electrophoresis sample combs include 32 and 39 teeth. This series of nucleic acid electrophoresis units are designed for AFLP analysis, SSR and SSCP research activities.
Benefits: Accessories
Description |
Quantity |
Body Tank |
1 |
Notched glass plates |
2 |
Square glass plates |
2 |
Shark comb |
2 |
Edging strip |
4 |
Clips |
8 |
Sealing strip |
1 |
Electrical Cables |
1 |
- Simple operation; four fastening knobs
- Special heat dissipation processed aluminum plate firmly clings to the gel plates, which effectively guarantees the gel temperature is even, ensuring the electrophoresis trip is straighter.
- The discharge pipe for the upper and bottom buffer makes filling and discharge more convenient and simpler.
- 50% buffer savings compared with traditional tanks
- 2 year warranty
Model |
GEL Size (mm) |
SAMPLE WELLS |
BUFFER VOLUME(ml) |
GEL NUMBER |
VGS1842 |
180 X 420 |
33, 39 |
500 |
1 |
VGS3342 |
330 X 420 |
50, 62, 74,100 |
750 |
1 |
VGS3332 |
330 X 320 |
50, 62, 74,100 |
750 |
1 |
Suggested Power supply Consort EV232 or EV233 high voltage power supplies
For more details see DOWNLOADS
