TV100YK (cooled & caster) mini-Gel Electrophoresis System, Scie-plas
TV100YK
$0.00
- Cooled Tank - faster & greater reproducibility
- Gel Caster
- 3 year manufacturer's warranty
You might also like
TV100YK (cooled & caster) mini-Gel Vertical Electrophoresis System, Scie-plas
DISCONTINUED

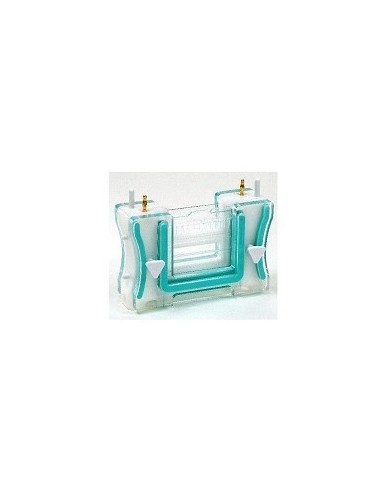

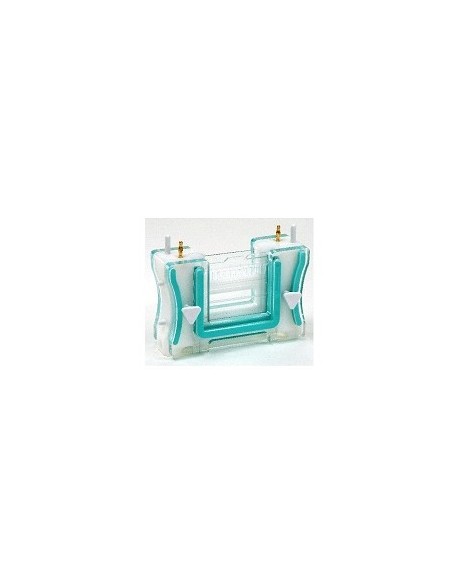

The TV100YK dual mini-gel electrophoresis unit with cooling and gel caster is the electrophoresis system of choice for those who want to cast their own mini-gels for PAGE, and achieve faster more reproducible results. The gel casting unit includes Soft silicone gaskets in a robust precision engineered casting base. It also acts in tandem with the Gel Running Module (GRM) to provide simple, leak-free gel casting and assembly. The GRM supports both gel-casting and electrophoresis; glass plate stops engineered within the GRM that serve as an immoveable barrier, locking the glass plates firmly into position on the casting base to provide a reliable leak proof seal; only as many screws as are necessary to secure the glass plates within the GRM. The tank is constructed from 12mm acrylic and is leak free. TV100K has the added benefit of cooling is via an electrically inert, thermally conductive cooling coil in the bottom of the gel tank for faster separations at higher voltages. The cooling coil is connected using snap-lock connectors to your choice of chiller or recirculating refrigerated water bath.
Complete system Includes:

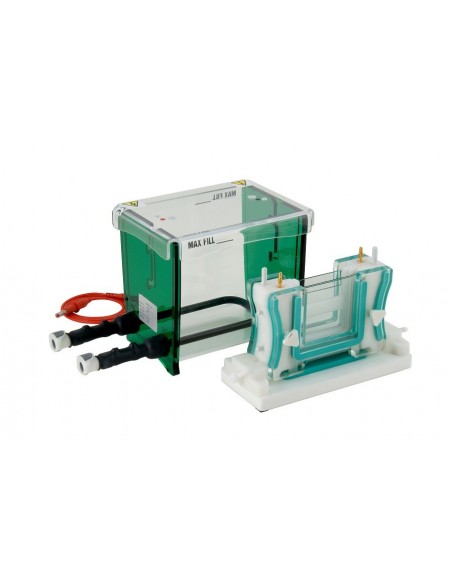

- TV100YK unit with GRM, gel tank with built-in cooling coil and quick-fit tubing, lid, 2 (10 x 10cm; W x H) plain glass plates, 4 x 1mm spacers, 2 x spacer aligners, 2 (10 x 10cm) notched glass plates, 1 x dummy plate and 2 x 1mm thick 12-sample combs, plus a casting base and 2 x silicone seals
Features include:
- Cooling coil - Faster more Reproducible Results
-
Gel Caster - your own (10 x 10xm) min-gels
- Run 1 or 2 gels
- Easy to use Gel Running Module
-
Use most commercially available gels
-
Platinum electrodes 99.99%
-
Gold plated terminals
|
Technical Specifications: |
||
|
|
TV100Y |
TV100YK (cooled) |
|
Unit Dimensions (W x D x H) |
20 x 15 x 14cm |
28 x 15 x 18cm |
|
Inner Tank Dimensions (W x D x H) |
16.5 x 11 x 11.5cm |
16.5 x 11 x 15cm |
|
Plate Dimensions (W x H x T) |
10 x 10 x 0.2cm |
10 x 10 x 0.2cm |
|
Standard Spacer Dimensions (W x H x T) |
1 x 10 x 0.1cm |
1 x 10 x 0.1cm |
|
Active Gel Dimensions (W x H) |
8 x 8.5cm |
8 x 8.5cm |
|
Maximum Gel Capacity |
2 |
2 |
|
Recommended Buffer Volume |
Inner Buffer Chamber 90ml |
Inner Buffer Chamber 90ml |
|
Gel Tank 1200ml |
Gel Tank 1600ml |
|
|
Recommended Running Conditions for Denaturing/Native PAGE Gel |
Voltage 50 - 100V |
Voltage 100 - 150V |
|
Current 5 - 10mA |
Current 10 - 15mA |
|
|
Time 1.5 - 2.5h |
Time 1 - 1.75h |
|
|
Snap-lock Connectors for Cooling Coil |
n/a |
Inner Diameter 10mm |
|
n/a |
Outer Diameter 12mm |
|
|
Quick-fit Tubing |
n/a |
Inner Diameter 10mm |
|
n/a |
Outer Diameter 12mm |
|
|
Power Output Connectors (diameter) |
Shrouded, 4mm |
Shrouded, 4mm |
|
Recommended Power Supply |
Consort EV243 |
Consort EV243 |
