HU13 Midi Horizontal Gel Electrophoresis System, Scie-plas

2 Reviews
HU13
$559.83
  • Throughput: 112 Sample
  • Buffer Recirculation
  • Removable Casting Tray: UV Transparent


HU13 MIDI Horizontal Gel Electrophoresis System, Scie-plas


A norizonal electrophoresis system for nucleic acid electrophoresis



The HU13 MIDI offers a maximum of 112 sample throughput, with buffer recirculation capability providing increased productivity and resolution in nucleic acid electrophoresis. The buffer recirculation prevents ionic gradient formation during electrophoresis. It’s still small 15 cm length provides optimize gel running conditions for fast and optimal resolution of nucleic acids. It has a removable gel-casting tray with silicon end gaskets for in-tank gel casting. To cast a gel, the gel-casting tray is turned 90° to the direction of electrophoresis; the end gaskets form a leak proof seal against the inner walls of the running chamber. Once the gel has set, the gel-casting tray with gel is rotated to its original position for sample loading and electrophoresis.

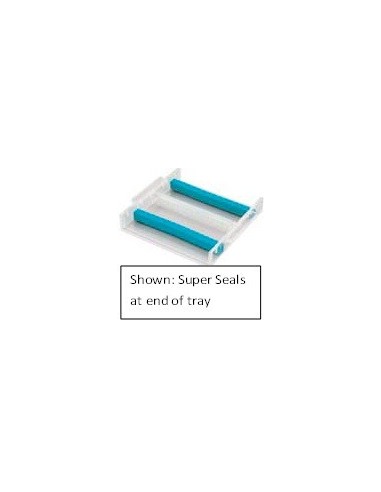

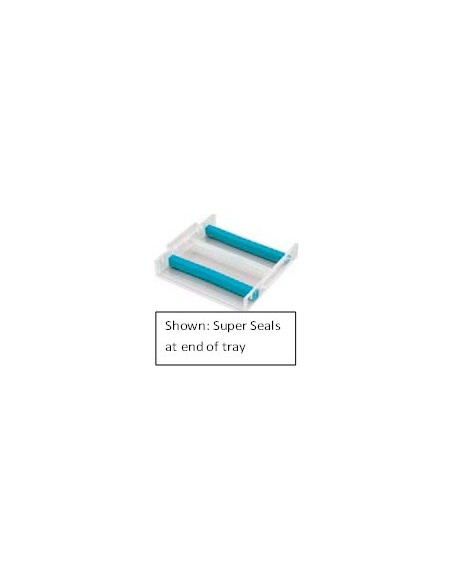

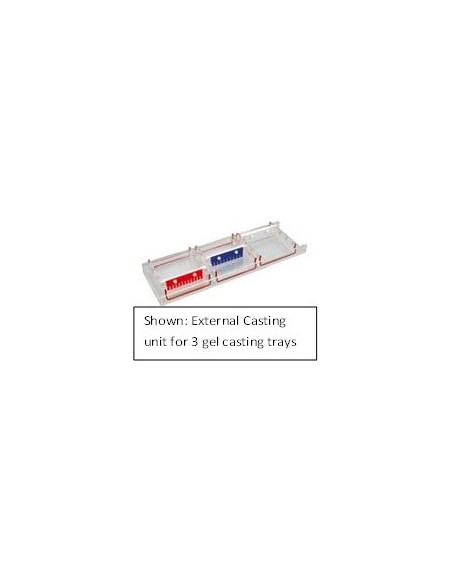

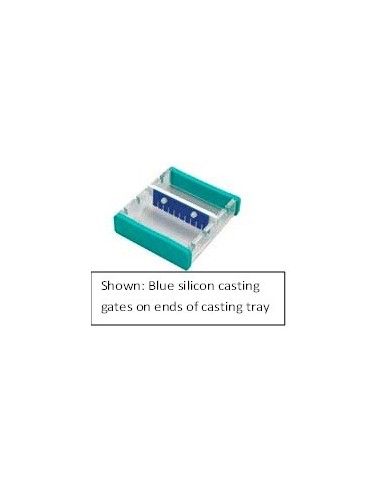

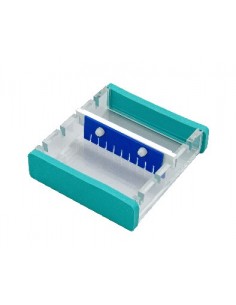

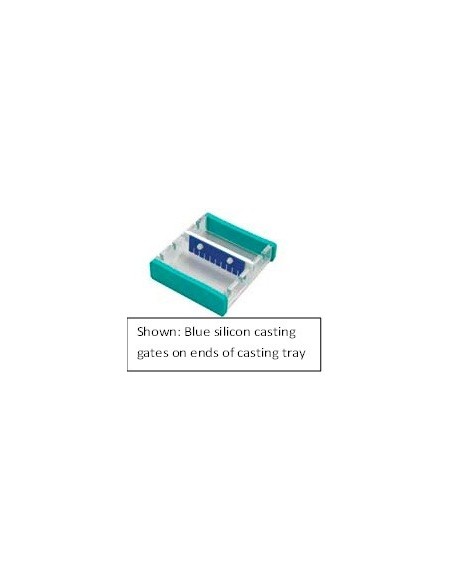

Alternatively, single gels may be cast outside the tank using HU13-SCG silicone casting gates or HU13-SS Scie-Plas Super-Seals, while up to 3 additional gels may be cast simultaneously within the HU13-CU mini-gel external casting unit.

Features include:

  • Throughput: 112 Samples (max)
  • Buffer Recirculation Ports
  • Gel Casting Tray: Removable, UV Transparent
  • Gel Tank: 12mm Acrylic, Leak Proof, Side Handles
  • Color Coded Combs: 1,1.5, 2mm thickness
  • Electrodes: 99.99% Platinum
  • Terminals: Gold plated
  • Safety Lid: Offset Electrodes,  4mm Shrouded Power Cords, CE approved
  • 3 year manufacturer’s warranty

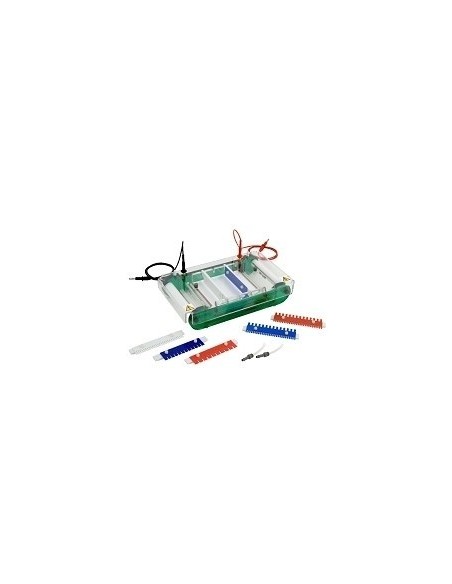

 Complete System: HU13

Midi horizontal gel unit with removable casting tray and 2 x 1mm thick, 16-sample combs, colored loading strips and buffer recirculation ports

 For a complete list of Combs and Parts go to "Download" tab.

Technical Specifications: HU13

Unit Dimensions (W x D x H)

20 x 32 x 7cm

Gel Dimensions (W x H)

12.8 x 15cm

Buffer Volume

900ml

Buffer Circulation Ports

2

Maximum Sample Capacity

112

Combs (quantity)

2

Comb Thicknesses

1, 1.5 & 2mm

Comb Throughput (maximum)

8 – 28 samples

Comb Slots

4

Migration Distance Between Comb Slots

3.5cm

Power Output Connectors (diameter)

Shrouded, 4mm

Recommended Running Voltage

100 - 125V

Recommended Power Supply

Consort EV222
