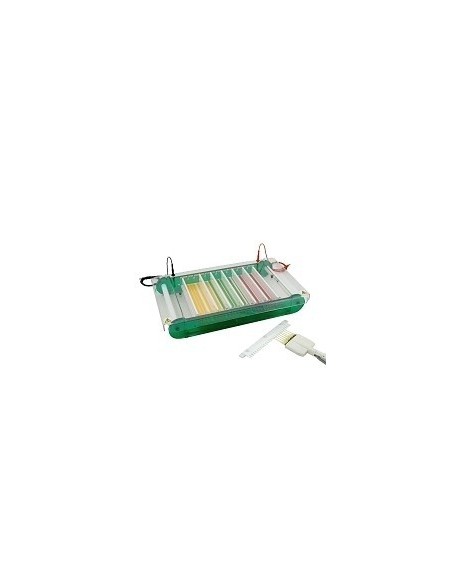

HU25, Maxi-Plus Gel Horizontal Electrophoresis System, Scie-plas

A horizontal gel system for nucleic acid electrophoresis

The HU25 Maxi Gel Standard offers up to 624 sample throughput on a 25 x 30cm gel size, in a leak free tank with handles and buffer recirculation capability to eliminate pH and ion gradient formation. This unit provides outstanding value in high throughput nucleic acid electrophoresis applications like HLA typing or PCR screening.  It has a UV transparent and removable gel-casting tray with silicon end gaskets for in-tank gel casting. To cast a gel, the gel-casting tray is turned 90° to the direction of electrophoresis; the end gaskets form a leak proof seal against the inner walls of the running chamber. Once the gel has set, the gel-casting tray with gel is rotated to its original position for sample loading and electrophoresis. Tank construction includes: buffer recirculation ports to prevent buffer gradients (pH & ionic), 12mm Acrylic and leak proof design, 99.99% Platinum electrodes and Gold terminals.

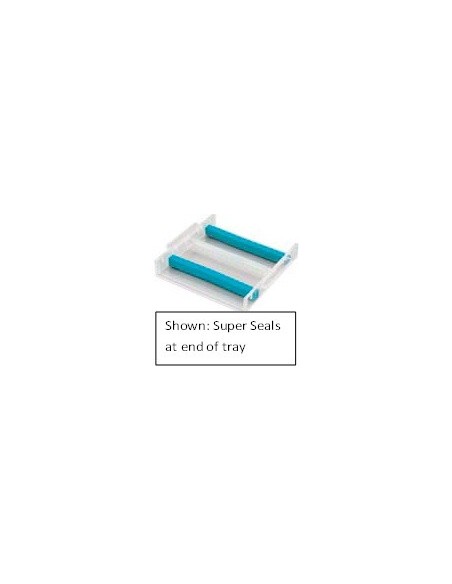

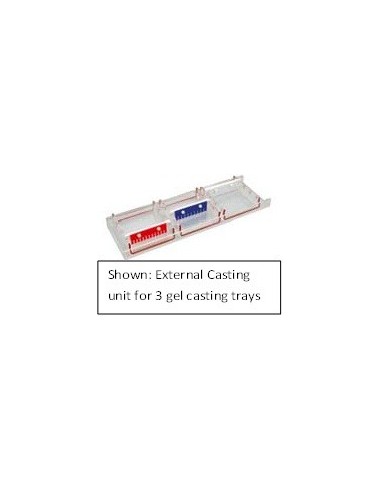

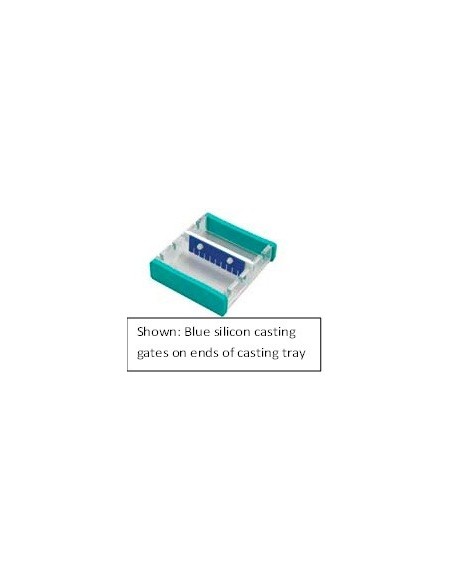

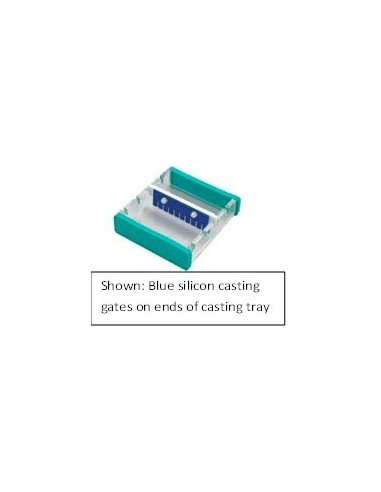

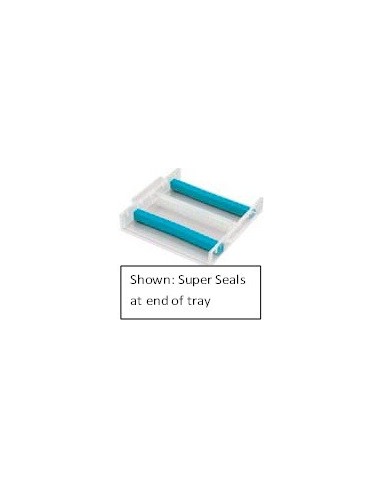

Alternatively, single gels may be cast outside the tank using HU25-SCG silicone casting gates or HU25-SS Scie-Plas Super-Seals, while up to 3 additional gels may be cast simultaneously within the HU25-CU mini-gel external casting unit.

Features include:

  • Throughput: 624 Samples (max)
  • Gel Size: 25 x 30cm
  • Buffer Recirculation Ports
  • Multi-channel Pipette Compatible
  • Gel Casting Tray: UV Transparent, Removable, 12 Comb Slots
  • Color Coded Combs: 1,1.5, 2mm Thickness Available
  • Safety Lid: Offset Electrodes,  4mm Shrouded Power Cords, CE Approved
  • 3 year manufacturer’s warranty

Complete System: HU25

Maxi-Plus Gel horizontal gel unit with removable casting tray, including casting gates with integral silicone seals, 6 x 1mm thick, 26-sample combs, colored loading strips and buffer recirculation ports

For a list of Combs and Parts go to "Download" tab.


Technical Specifications: HU25

Unit Dimensions (W x D x H)

33 x 56 x 9cm

Gel Dimensions (W x H)

25 x 30cm

Buffer Volume


Buffer Circulation Ports


Maximum Sample Capacity


Combs (quantity)


Comb Thicknesses

1, 1.5 & 2mm

Comb Throughput (maximum)

26 – 52 samples

Comb Slots


Migration Distance Between Comb Slots


Power Output Connectors (diameter)

Shrouded, 4mm

Recommended Running Voltage

150 x 200V

Recommended Power Supply

Consort EV 243
