CHU25 Maxi Plus Horizontal Electrophoresis System

DISCONTINUED

A high throughput and cooled horizontal gel electrophoresis system with buffer recirculation for optimum nucleic acid separations

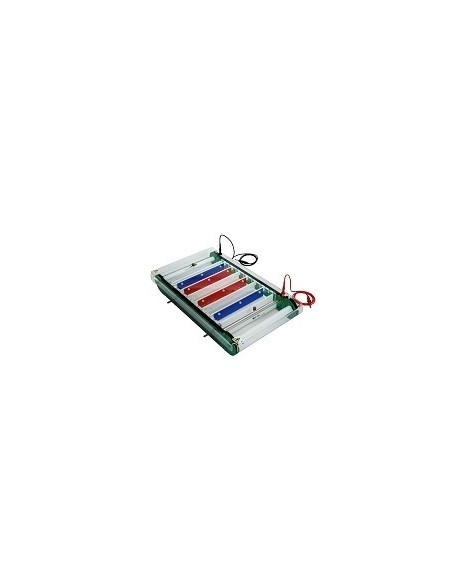

The CHU25 Cooled Maxi Gel system is a cooled horizontal electrophoresis system. It provides faster and sharper resolution for up to 624 sample throughput on a 25 x 30cm gel size in a leak free tank with handles and buffer recirculation capability to eliminate pH and ion gradient formation. The cooling system permits higher voltages for faster runs.  It has a UV transparent and removable gel-casting tray with silicon end gaskets for in-tank gel casting. To cast a gel, the gel-casting tray is turned 90° to the direction of electrophoresis; the end gaskets form a leak proof seal against the inner walls of the running chamber. Once the gel has set, the gel-casting tray with gel is rotated to its original position for sample loading and electrophoresis. Tank construction includes: buffer recirculation ports to prevent buffer gradients (pH & ionic), 12mm Acrylic and leak proof design, 99.99% Platinum electrodes and Gold terminals.

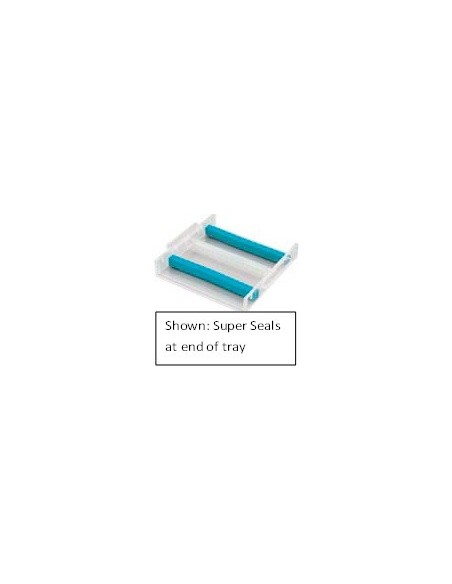

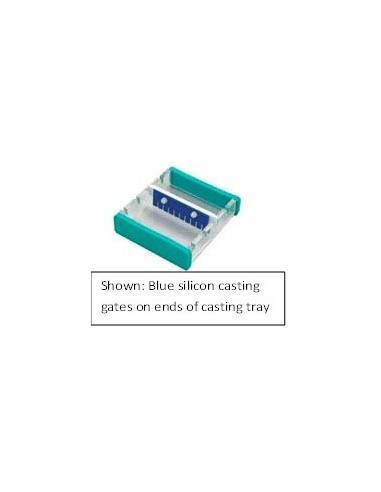

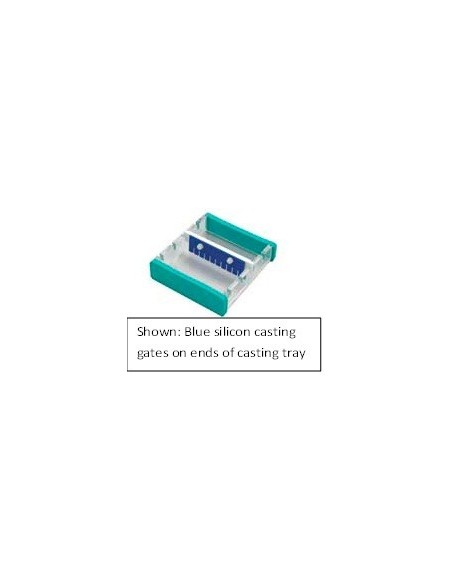

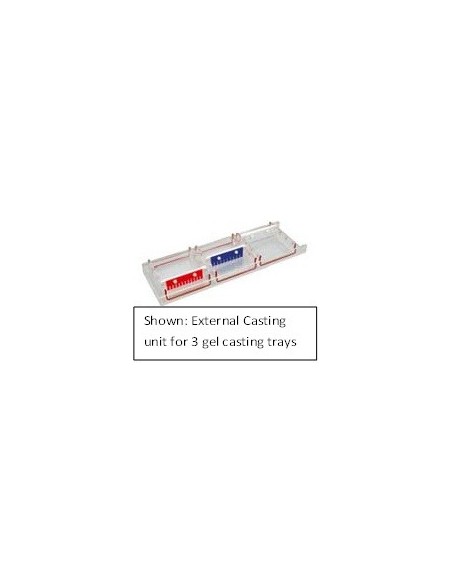

Alternatively, single gels may be cast outside the tank using HU25-SCG silicone casting gates or HU25-SS Scie-Plas Super-Seals, while up to 3 additional gels may be cast simultaneously within the HU25-CU mini-gel external casting unit.

Features include:

• Throughput: 624 Samples (max)
• Gel Size: 25 x 30cm
• Cooling System connects to chiller
• Buffer Recirculation Ports
• Multi-channel Pipette Compatible
• Gel Casting Tray: UV Transparent, Removable, 12 Comb Slots
• Color Coded Combs: 1,1.5, 2mm Thickness Available
• Safety Lid: Offset Electrodes,  4mm Shrouded Power Cords, CE Approved
• 3 year manufacturer’s warranty

Complete System: CHU25

Maxi-Cooled Gel horizontal gel unit with removable casting tray, including casting gates with integral silicone seals, 6 x 1mm thick, 26-sample combs, colored loading strips and buffer recirculation ports

For a list of Combs and Parts go to "Download" tab.
