HU10 Mini-Plus Horizontal Electrophoresis System, Scie-plas

HU10
$502.21
  • Throughput: 80 Samples
  • Buffer Volume: 450ml
  • Removable Gel Casting Tray

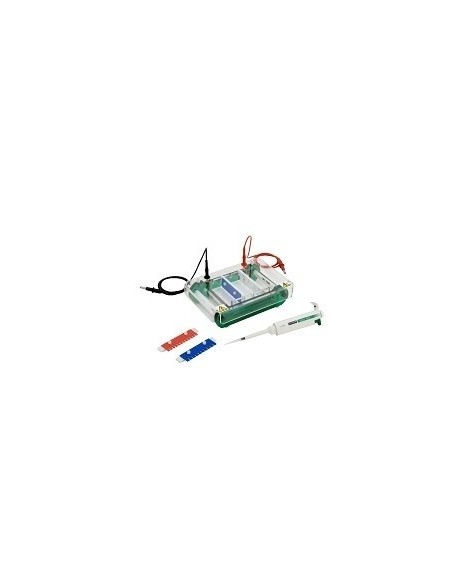

HU10, Mini-Plus Horizontal Gel Electrophoresis System , Scie-plas


Horizonal gel electrophoresis for nucleic acid separations



The HU10 Mini-plus is a horizontal electrophoresis system for those who need more productivity in their nucleic acid electrophoresis work. It’s still small 10 cm lengths optimize gel running conditions for fast and optimal resolution of nucleic acids. It has a removable gel-casting tray with silicon end gaskets for in-tank gel casting. To cast a gel, the gel-casting tray is turned 90° to the direction of electrophoresis; the end gaskets form a leak proof seal against the inner walls of the running chamber. Once the gel has set, the gel-casting tray with gel is rotated to its original position for sample loading and electrophoresis.

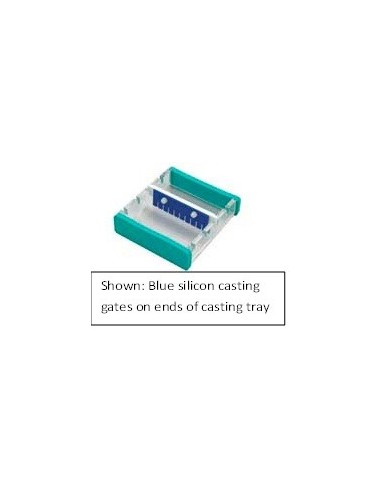

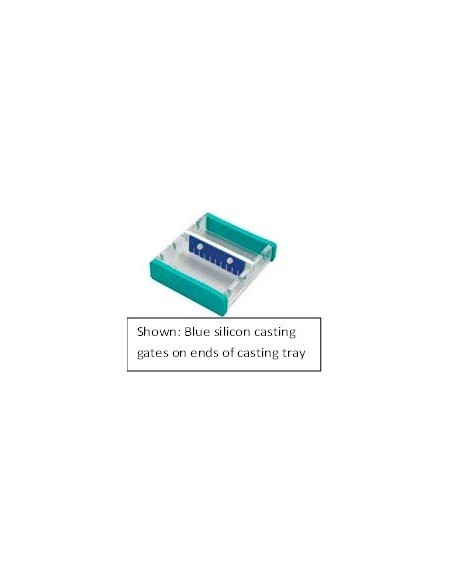

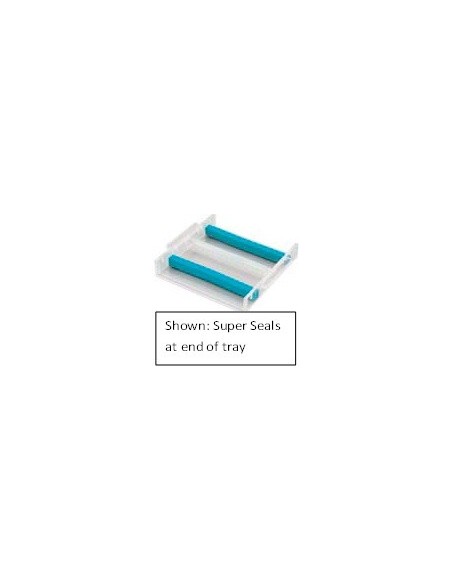

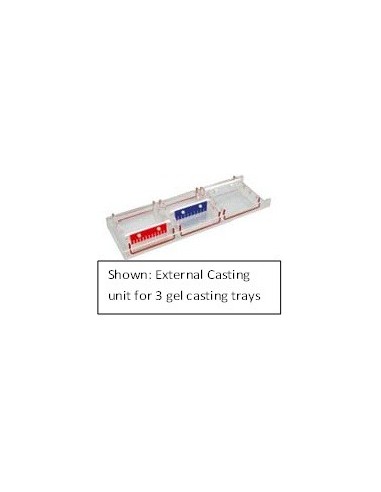

Alternatively, single gels may be cast outside the tank using HU10-SCG silicone casting gates or HU10-SS Scie-Plas Super-Seals, while up to 3 additional gels may be cast simultaneously within the HU10-CU mini-gel external casting unit.



Features include:

  • Throughput: 80 Samples (max)
  • Removable Gel Casting Tray: UV Transparent
  • Gel Tank: 12mm Acrylic, Leak Proof, Side Handles
  • Color Coded Combs: 1,1.5, 2mm thickness
  • Electrodes: 99.99% Platinum
  • Terminals: Gold plated
  • Safety Lid: Offset Electrodes,  4mm Shrouded Power Cords, CE approved
  • 3 year manufacturer’s warranty

Complete System: HU10

Mini-Plus horizontal gel unit with removable casting tray, 2 x 1mm thick, 16-sample combs and colored loading strips

For Combs and Accessories, see "Download" tab.

Technical Specifications: HU10

Unit Dimensions (W x D x H)

16.5 x 23 x6.5cm

Gel Dimensions (W x H)

10 x 11.5cm

Buffer Volume

450ml

Maximum Sample Capacity

80

Combs (quantity)

2

Comb Thicknesses

1, 1.5 & 2mm

Comb Throughput (maximum)

8 - 20

Comb Slots

4

Migration Distance Between Comb Slots

2.5cm

Power Output Connectors (diameter)

Shrouded, 4mm

Recommended Running Voltage

75 - 125V

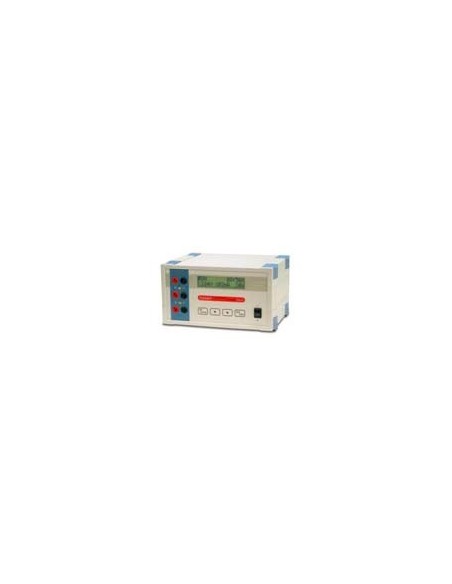

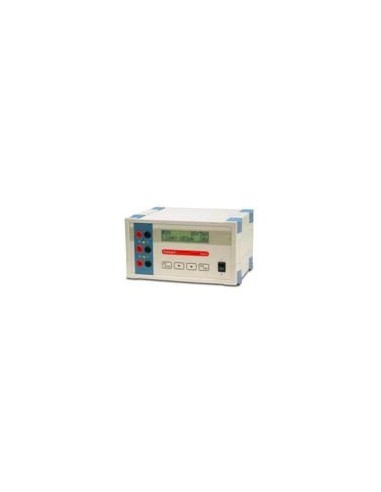

Recommended Power Supply

Consort EV222
