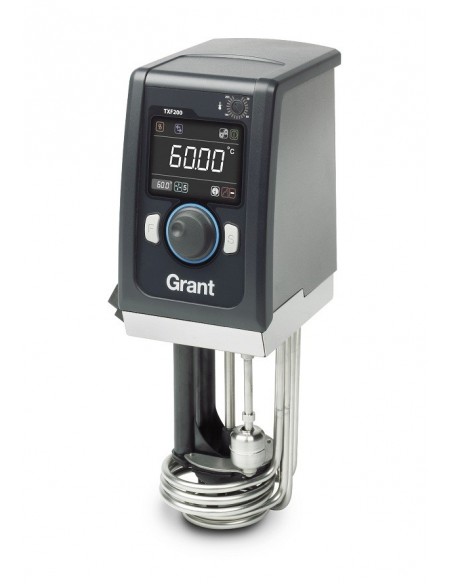

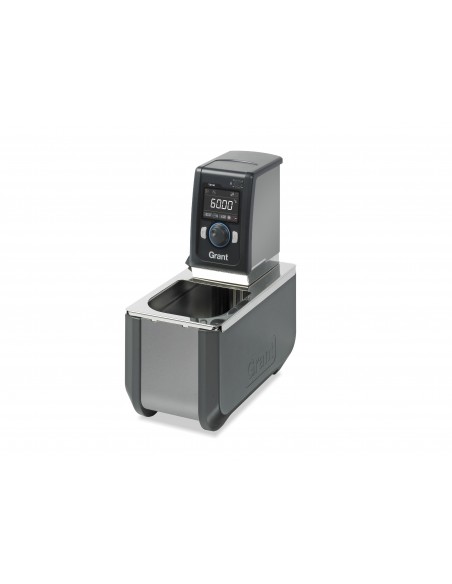

TXF200-ST5 5 Liter Heated Circulating Water Bath, Grant Instruments


*Temperature control range: -15°C to 200°C, +/- 0.01C
** USB/RS232 for programming, data capture and status display, accept remote temperature probe



  • User calibration capable
  • Adjustable support bridge
  • Easy-to-use  & read controls
  • Programmable up to 10 programs, 100 segments
  • Working area (l x w): 150 x 150 mm
  • ***Min/max liquid depths: 85/140 mm
  • Inner tank dimensions (l x w x h): 300 x150 x 150 mm
  • Overall dimensions including controller: 330 x 180 x 395 mm
  • Stainless steel tank - high grade steel with durable polished finish
  • Operating set-points plus 3 adjustable temperature presets
  • Shutoff protection -   low liquid level or over temperature
  • 3 year warranty

*Operation at or below ambient temperature requires refrigerated immersion cooler accessory

** Requires Labwise software option

***Maximum depth can be increased by 10 mm; remove the circulation tray in 18, 26, 38 liter baths, with slight loss of performance


Lid not included.


For more details see "Downloads" and Accessories"
