TVS1400
  • Very high resolution
  • Sample throughput: 96
  • Gel Format: 33 x 41 cm


TVS1400, Large Format Gel Electrophoresis System, Scie-plas


NOTE: Scieplas has discontinued the TVS1400. Please consider the Biophoretics Sequenator series of nucleic acid electrophoresis systems.

  1. Sequenator 39
  2. Sequenator 100LG
  3. Sequenator 100SG


The TVS1400 is a large format (33 x 41cm) single gel electrophoresis unit for high-resolution techniques, such as DNA sequencing, SSCP, heteroduplex and oligonucleotide analysis. Unit provides long separation distance for maximum resolution.  The greater width of the TVS1400 allows a maximum of 96 samples to be processed during each electrophoretic separation.



 Features include:

  • Throughput: 96 samples
  • Gel Capacity: 1 large format 33 x 41cm (W x H)
  • Optional Fan with Control
  • Electrodes: 99.99% with Gold plated connectors
  • 3 year manufacturer’s warranty

 Optional Cooling Fan Kit and Theromostatic control vailable include:  FHS-KIT

  • Fan replaces ventilation grill.
  • Decreases Separation Time: < 2 hours at 55˚C at 75W constant power
  • Temp. Control Range: 0 – 100C
  • Fan Speed: 2700rpm
  • Noise: 36dba



Complete system includes:

  • TVS1400 single-plate vertical gel electrophoresis unit with integral GRM and aluminium back plate; upper and lower buffer chambers; lid, 2 (33 x 41cm; W x H) plain glass plates, 2 (33 x 41cm) notched glass plates, 2 x 0.35mm melinex spacers and 1 x 0.35mm thick 48-sample shark's tooth melinex comb





TV400-DGGE with Heated Tank



Unit Dimensions (W x D x H)

63 x 21.5 x 50cm

Plate Dimensions (W x H x T)

33 x 41 x 0.4cm

Standard Spacer Dimensions (W x H x T)

10 x 410 x 0.35mm

Active Gel Dimensions (W x H)

29 x 38.5cm

Maximum Gel Capacity

1 x 96

Recommended Buffer Volume

Inner Buffer Chamber: 1200ml

Gel Tank: 1200ml

Recommended Running Conditions for 6%

Denaturing PAGE Gel Using Passive Ventilation at 20C Ambient Ventilation

Power 45 – 55W

Gel Temperature: 50 – 60C

Time: 2.5 – 3.0h

Recommended Running Conditions for 6%

Denaturing PAGE Gel Using FHS-Kit at 20C Ambient Ventilation

Power: 75W

Gel Temperature: 55C

Time: 1.75h

Power Output Connectors (diameter)

Shrouded, 4mm

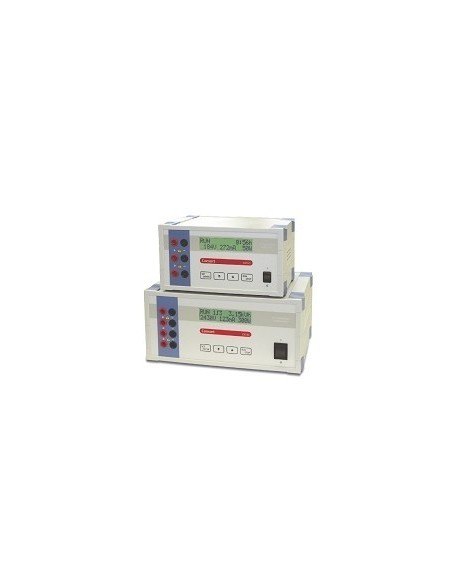

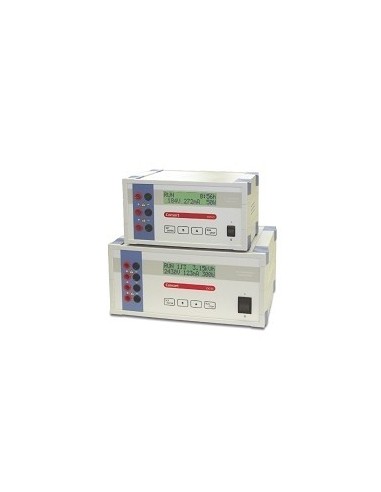

Recommended Power Supply

Consort EV232 or 233
