TV100K (cooled) Vertical mini-Gel Electrophoresis System

TV100K Cooled mini-Gel Vertical Electrophoresis System, Scie-plas

Name: TV100K Cooled mini-Gel Vertical Electrophoresis System, Scie-plas
Brand: Biophoretics
SKU: TV100K
Availability: InStock

1 Reviews

Reference TV100K

$0.00

Cooled Tank
Faster, more reproducible results
3 year manufacturers warranty

TV100K "Cooled" Vertical Dual mini-Gel Electrophoresis System, Scie-plas

DISCONTINUED

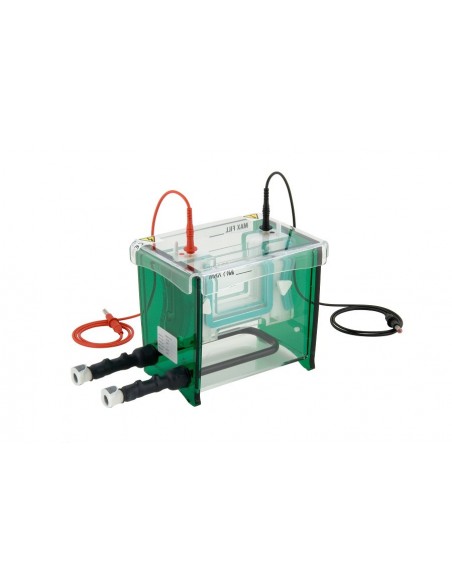

The TV100K Cooled dual mini-gel (10 x 10cm) electrophoresis unit is a robust and cost-effective solution for faster more reproducible results with most commercially available precast gels. TV100K has the added benefit of an electrically inert, thermally conductive cooling coil in the bottom of the gel tank for faster separations at higher voltages. The cooling coil is connected using snap-lock connectors to your choice of chiller or recirculating refrigerated water bath. The leak-free gel tank is constructed from 12mm acrylic; a versatile, timesaving gel-running module (GRM) supports both gel-casting and electrophoresis; glass plate stops engineered within the GRM that serve as an immoveable barrier, locking the glass plates firmly into position on the casting base to provide a reliable leak proof seal; only as many screws as are necessary to secure the glass plates within the GRM.

Complete System includes:

TV100K unit with GRM, gel tank with built-in cooling coil and quick-fit tubing, lid, 2 (10 x 10cm; W x H) plain glass plates, 4 x 1mm spacers, 2 x spacer aligners, 2 (10 x 10cm) notched glass plates, 1 x dummy plate and 2 x 1mm thick 12-sample combs

Features include:

Cooling coil - Faster more Reproducible Results
Run 1 or 2 gels (10 x 10xm)

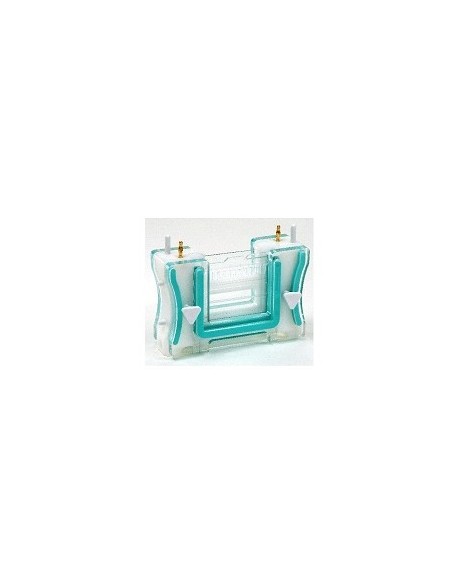

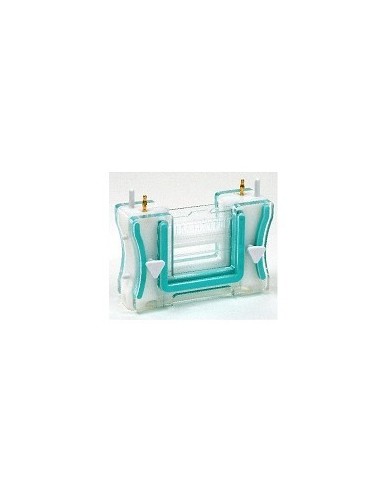

Easy to use Gel Running Module
Use most commercially available gels
Platinum electrodes 99.99%
Gold plated terminals

Technical Specifications:
	TV100	TV100K (cooled)
Unit Dimensions (W x D x H)	20 x 15 x 14cm	28 x 15 x 18cm
Inner Tank Dimensions (W x D x H)	16.5 x 11 x 11.5cm	16.5 x 11 x 15cm
Plate Dimensions (W x H x T)	10 x 10 x 0.2cm	10 x 10 x 0.2cm
Standard Spacer Dimensions (W x H x T)	1 x 10 x 0.1cm	1 x 10 x 0.1cm
Active Gel Dimensions (W x H)	8 x 8.5cm	8 x 8.5cm
Maximum Gel Capacity	2	2
Recommended Buffer Volume	Inner Buffer Chamber 90ml	Inner Buffer Chamber 90ml
Recommended Buffer Volume	Gel Tank 1200ml	Gel Tank 1200ml
Recommended Running Conditions for Denaturing/Native PAGE Gel	Voltage 50 - 100V	Voltage 100 - 150V
	Current 5 - 10mA	Current 10 - 15mA
	Time 1.5 - 2.5h	Time 1 - 1.75h
Snap-lock Connectors for Cooling Coil	n/a	Inner Diameter 10mm
Snap-lock Connectors for Cooling Coil	n/a	Outer Diameter 12mm
Quick-fit Tubing	n/a	Inner Diameter 10mm
Quick-fit Tubing	n/a	Outer Diameter 12mm
Power Output Connectors (diameter)	Shrouded, 4mm	Shrouded, 4mm

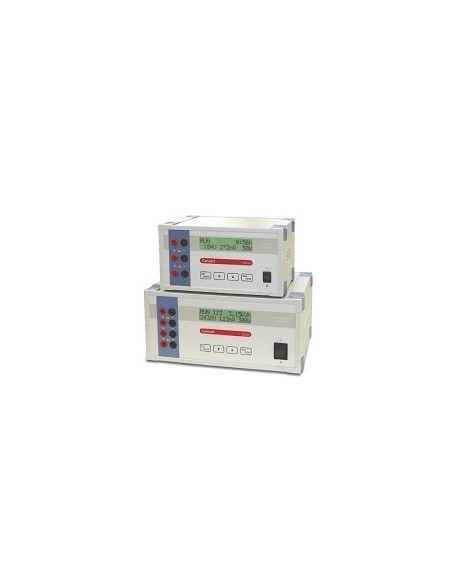

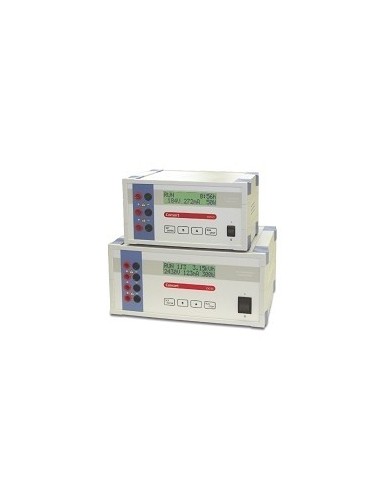

Recommended Power Supply	Consort EV243	Consort EV243
