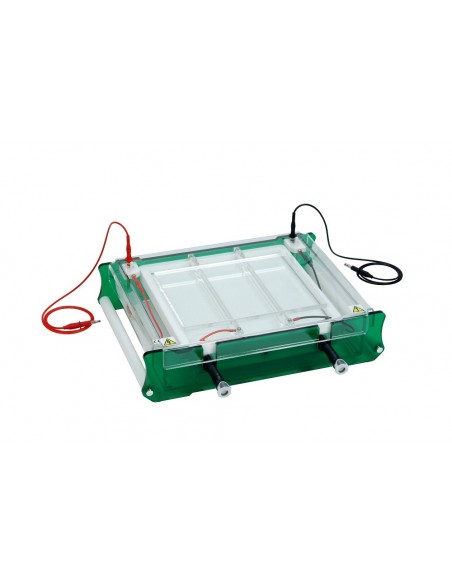

The IEF-SYS horizontal isoelectric focusing system is optimized for IEF applications using IPG Strips and precast horizontal IEF gels. The large 27 x 27cm ceramic cooling plate connects to an optional chiller for rapid and sustained cooling. The plates will accommodate two 125mm square or one 245 x 125mm precast gels, or a maximum of thirty 24cm IPG strips, at their respective operating temperatures of 4 and 20°C.
An acrylic electrode frame sits directly on the ceramic cooling plate for IEF gels, whereas a glass electrode frame may be employed when using IPG strips. In both applications, the positive and negative electrodes can be adjusted within the electrode frame - so that the voltage may be fine-tuned along each length of gel or IPG strip - and then held in position by a glass electrode weight. This unit has been proof tested with the following Serva Electrophoresis products: Serva IPG BlueStrips and Servalyt Precotes.
The IEF-SYS unit can be also adapted for wick-based electrophoresis with horizontal precast gels. The tank is a leak proof design with 99.99% Platinum electrodes.
Features include:
Complete System: IEF-SYS

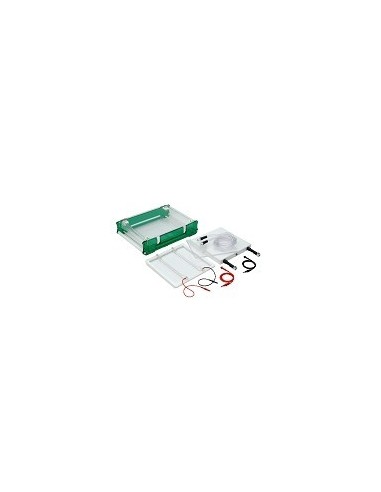

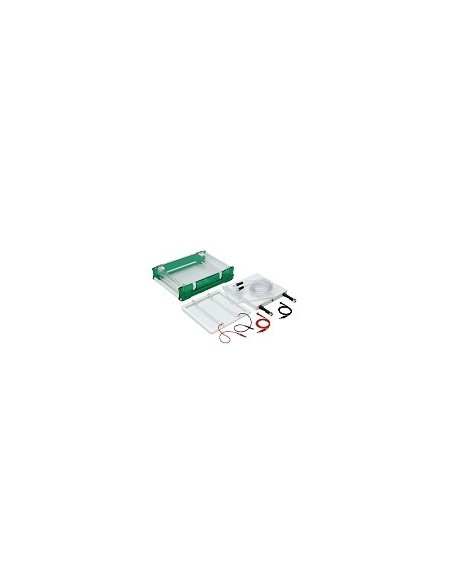

Flat-bed isoelectric focusing unit includes running tank, lid, 1 x ceramic cooling plate, 1 x glass plate, 1 x electrode frame, 1 x anode electrode, 1 x cathode electrode, 1 x glass electrode weight, 2 x quick-fit tubes and 2 x 2mm power cables
Technical Specifications: IEF-SYS | |||||||||
Maximum Sample Capacity | 30 IPG strips, 7cm to 24cm, Serva IPG BlueStrips | ||||||||
1 x 245 x 125mm or 2 x 125 x 125mm (W x L) SERVALYT™ PRECOTES™ IEF gels | |||||||||
Unit dimensions (W x D x H) | 46 x 41 x 11.5cm | ||||||||
Inner Tank Dimensions (W x D x H) | 37 x 31 x 8.5cm | ||||||||
Glass plate active dimensions (W x L x D) | 27 x 27 x 0.5cm | ||||||||
Electrode frame active dimensions (W x L x H) | 27 x 27 x 1cm | ||||||||
Cooling plate dimensions (W x L x D) | 27 x 27 x 3cm | ||||||||
Glass electrode weight active dimensions (W x L x H) | 20 x 26.5 x 1cm | ||||||||
Adjustable electrodes active dimensions (W x L x H) | 10 x 265 x 13mm | ||||||||
Recommended temperature for cooling plate 20°C during IEF with IPG strips | 20°C | ||||||||
Recommended temperature for cooling plate during IEF with IEF gels | 4°C | ||||||||
Power Output Connectors (diameter) | Shrouded, 2mm | ||||||||

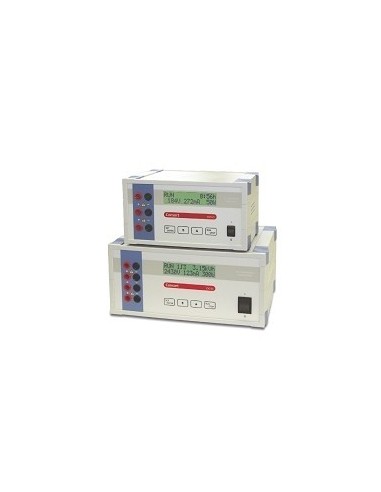

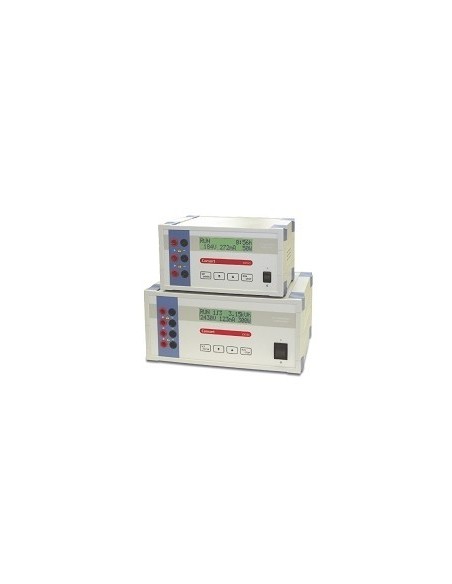

Recommended Power Supply | Consort EV 232 or 262 | ||||||||
Recommended Running Conditions for 125mm long Servalyt Precote IEF gels | Voltage Step | 1 | 2 | 3 | 4 | 5 | End of run | ||
Voltage | 300 | 600 | 1000 | 1200 | 1500 | 2000 | |||
Time (min) | 20 | 20 | 30 | 30 | 30 | 60 | |||
Volt-hours | 100 | 200 | 500 | 600 | 750 | 2000 | |||
Recommended Running Conditions for 7cm SERVA IPG Strips | Voltage Step | 1 | 2 | 3 | 4 | 5 | End of run | ||
Voltage | 150 | 300 | 600 | 1500 | 3000 | 330 | |||
Time (min) | 0.5 | 0.5 | 0.5 | 0.5 | 2.5 | <20 | |||
Volt-hours | 75 | 150 | 300 | 750 | 7500 | - | |||
Recommended Running Conditions for 18cm SERVA IPG Strips | Voltage Step | 1 | 2 | 3 | 4 | End of Run | |||
Voltage | 300 | 600 | 1500 | 3000 | 300 |
| |||
Time (min) | 1 | 1 | 1 | 12.5 | <20 |
| |||
Volt-hours | 300 | 600 | 1500 | 37500 | - |
| |||
Snap-lock Connectors for Cooling Coil | I.D. | 10mm | O.D. | 12mm | |||||
Quick Fit Tubing | I.D. | 10mm | O.D. | 12mm |
