HU20
$855.08
  • Throughput: 168 Samples
  • Buffer Recirculating Capability
  • Multi-channel Pipette Compatible

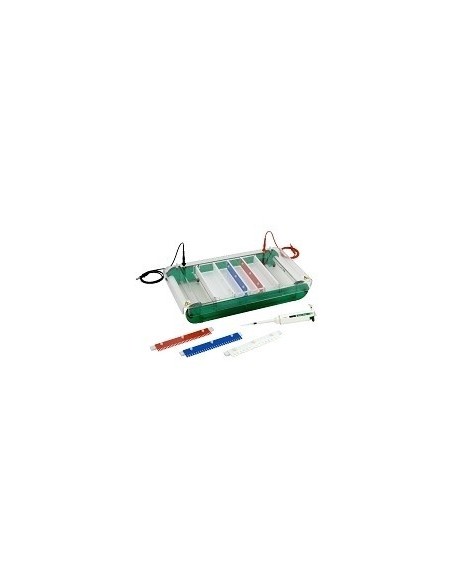

HU20, Maxi Gel Standard Horizontal Electrophoresis System, Scie-plas


A horizontal gel electrophoresis system for nucleic acid electrophoresis


The HU20 Maxi Gel Standard offers up to 168 sample throughput on a 20 x 20cm gel size, in a leak free tank with handles and buffer recirculation capability to eliminate pH and ion gradient formation.

This unit provides outstanding value for a high throughput nucleic acid electrophoresis device. Use this for PCR screening and RFLP analysis.  It has a UV transparent and removable gel-casting tray with silicon end gaskets for in-tank gel casting. To cast a gel, the gel-casting tray is turned 90° to the direction of electrophoresis; the end gaskets form a leak proof seal against the inner walls of the running chamber. Once the gel has set, the gel-casting tray with gel is rotated to its original position for sample loading and electrophoresis. Tank construction includes: buffer recirculation ports to prevent buffer gradients (pH & ionic), 12mm Acrylic and leak proof design, 99.99% Platinum electrodes and Gold terminals.

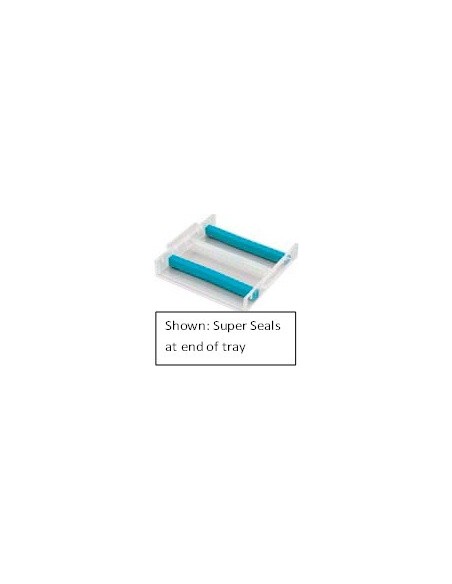

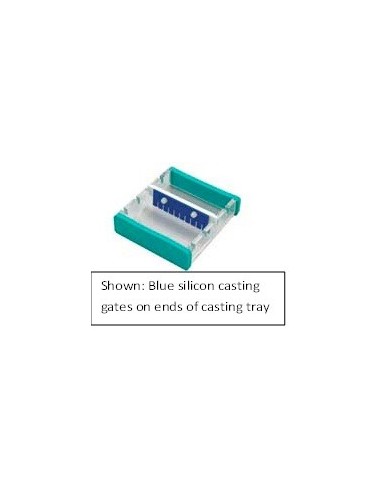

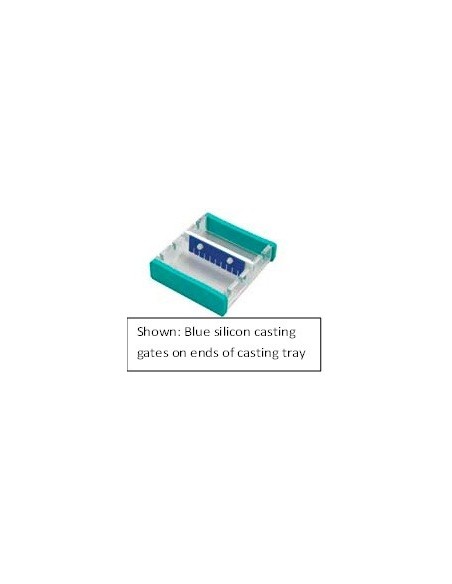

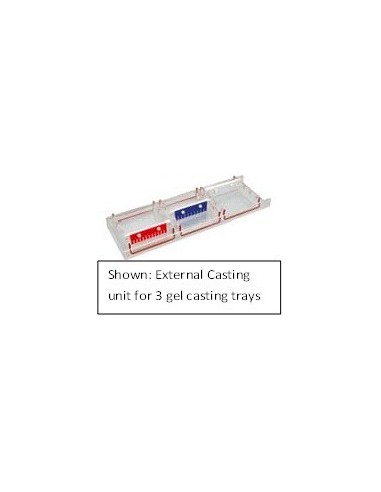

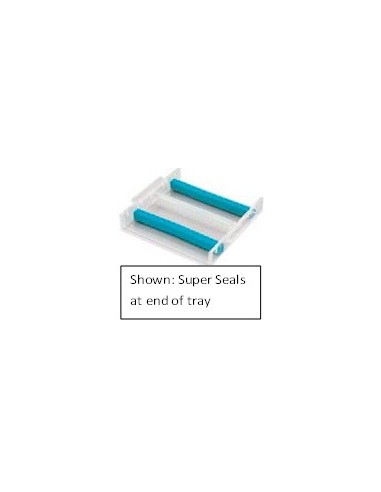

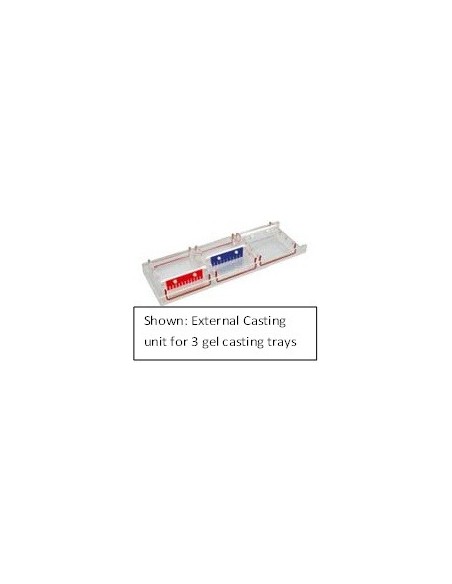

 Alternatively, single gels may be cast outside the tank using HU20-SCG silicone casting gates or HU20-SS Scie-Plas Super-Seals, while up to 3 additional gels may be cast simultaneously within the HU20-CU mini-gel external casting unit.

 Features include:

  • Throughput: 168 Samples (max)
  • Gel Size: 20 x 20cm
  • Multi-Channel Pipette Compatible
  • Buffer Recirculation Ports
  • Gel Casting Tray: UV Transparent, Removable, 4 Comb Slots
  • Color Coded Combs: 1,1.5, 2mm Thickness Available
  • Safety Lid: Offset Electrodes,  4mm Shrouded Power Cords, CE Approved
  • 3 year manufacturer’s warranty

 Complete System: HU20

Maxi Gel Standard horizontal gel unit with removable casting tray, including casting gates with integral silicone seals, 2 x 1mm thick, 16-sample combs, colored loading strips and buffer recirculation ports

For a list of Combs and Parts go to "Download" tab.



Technical Specifications: HU20

Unit Dimensions (W x D x H)

27 x 47.5 x 8cm

Gel Dimensions (W x H)

20 x 20cm

Buffer Volume

2200ml

Buffer Circulation Ports

2

Maximum Sample Capacity

168

Combs (quantity)

2

Comb Thicknesses

1, 1.5 & 2mm

Comb Throughput (maximum)

16 – 42 samples

Comb Slots

4

Migration Distance Between Comb Slots

5cm

Power Output Connectors (diameter)

Shrouded, 4mm

Recommended Running Voltage

150 x 175V

Recommended Power Supply

Consort EV 243
