HU15, Standard Gel Horizontal Electrophoresis System, Scie-plas

price $525.30

HU15

Less more

Comodo SSL

Customer ratings and reviews

Nobody has posted a review yet
in this language

Rate / write a comment

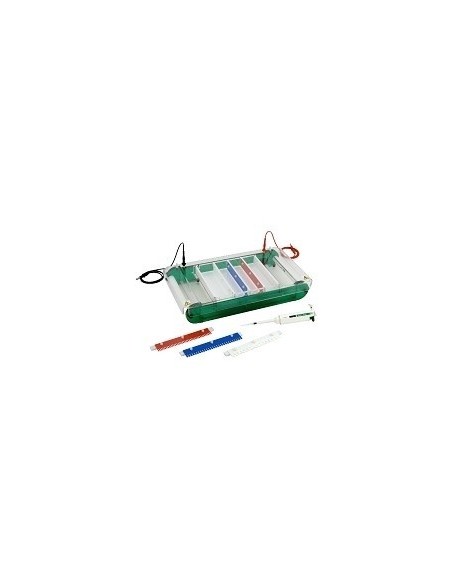

HU15, Standard Gel Horizontal Electrophoresis System with Removable Casting Tray, Scie-plas



The HU15 Standard offers you up to 120 sample throughput, on a 15 x 15cm gel size in a compact electrophoresis tank with buffer recirculation capability for optimal nucleic acid electrophoresis. It has a removable gel-casting tray with silicon end gaskets for in-tank gel casting. To cast a gel, the gel-casting tray is turned 90° to the direction of electrophoresis; the end gaskets form a leak proof seal against the inner walls of the running chamber. Once the gel has set, the gel-casting tray with gel is rotated to its original position for sample loading and electrophoresis. Tank construction includes: buffer recirculation ports to prevent buffer gradients (pH & ionic), 12mm Acrylic and leak proof design, 99.99% Platinum electrodes and Gold terminals, plus convenient carrying handles.

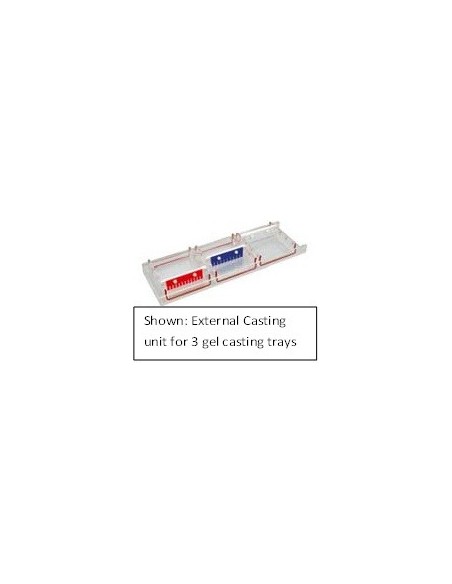

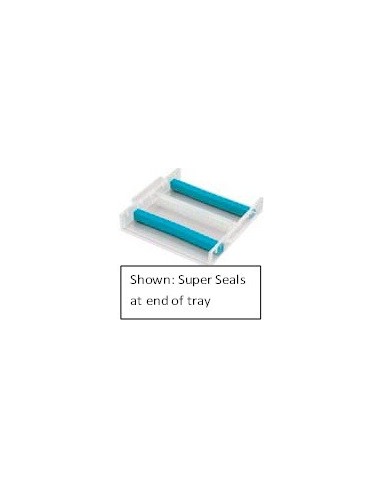

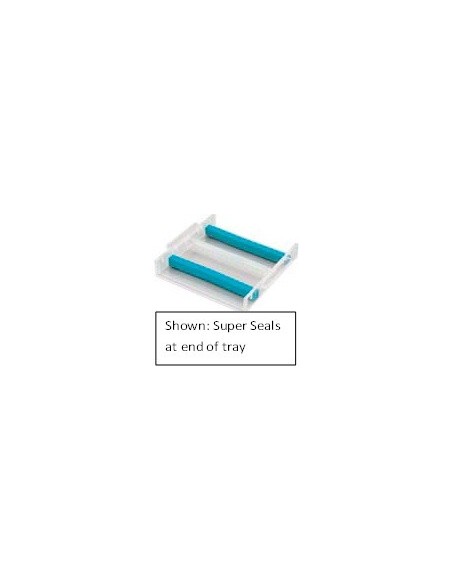

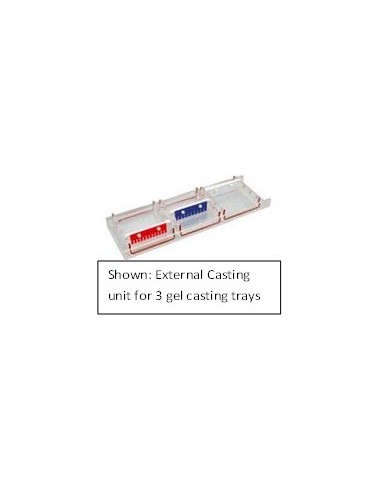

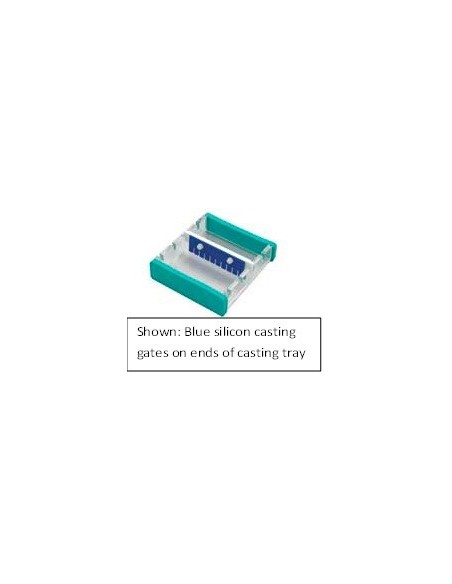

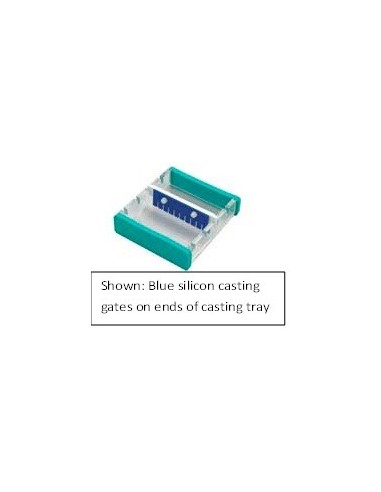

Alternatively, single gels may be cast outside the tank using HU15-SCG silicone casting gates or HU15-SS Scie-Plas Super-Seals, while up to 3 additional gels may be cast simultaneously within the HU15-CU mini-gel external casting unit.



Features include:

  • Throughput: 120 Samples (max)
  • Gel Size: 15 x 15cm
  • Buffer Recirculation Ports
  • Multi-Channel Pipette Compatible
  • Gel Casting Tray: UV transparent, Removable, 4 Comb Slots
  • Color Coded Combs: 1,1.5, 2mm thickness available
  • Safety Lid: Offset Electrodes,  4mm Shrouded Power Cords, CE approved
  • 3 year manufacturer’s warranty



Complete System: HU15

Standard horizontal gel unit with removable casting tray, including casting gates with integral silicone seals, 2 x 1mm thick, 16-sample combs, colored loading strips and buffer recirculation ports, power cords

For a list of Combs and Parts go to "Download" tab.



Technical Specifications: HU15

Unit Dimensions (W x D x H)

21.5 x 33.5 x 7cm

Gel Dimensions (W x H)

15 x 15cm

Buffer Volume

1200ml

Buffer Circulation Ports

2

Maximum Sample Capacity

120

Combs (quantity)

2

Comb Thicknesses

1, 1.5 & 2mm

Comb Throughput (maximum)

1– 30 samples

Comb Slots

4

Migration Distance Between Comb Slots

3.5cm

Power Output Connectors (diameter)

Shrouded, 4mm

Recommended Running Voltage

100 - 125V

Recommended Power Supply

Consort EV 243 or 222
